SGM2038 - 500mA Very Low Dropout Bias Rail CMOS Voltage Regulator

SG Micro

The SGM2038 by SG Micro is a 500mA Very Low Dropout Bias Rail CMOS Voltage Regulator. Below is the official datasheet preview.

Datasheet Details

Part number	SGM2038
Manufacturer	SG Micro
File Size	683.27 KB
Description	500mA Very Low Dropout Bias Rail CMOS Voltage Regulator
Datasheet	SGM2038-SGMicro.pdf

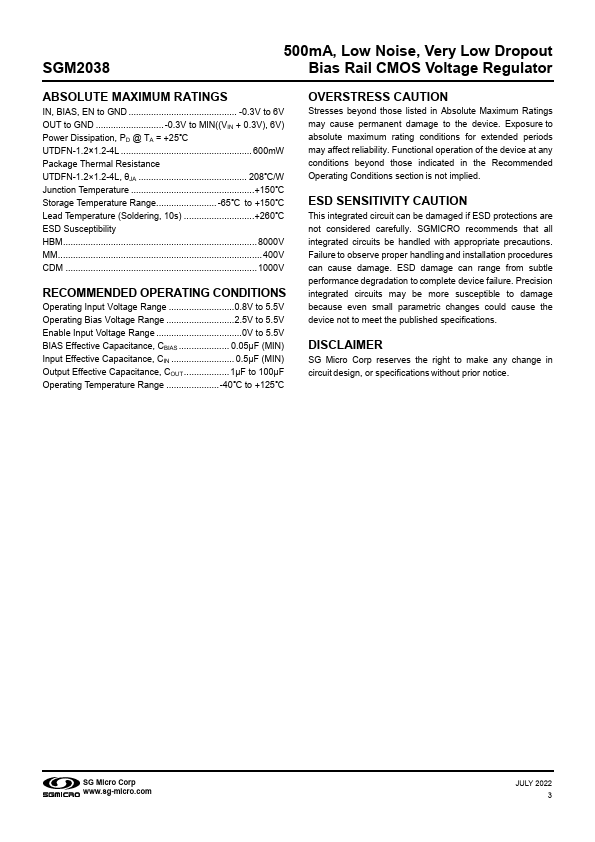

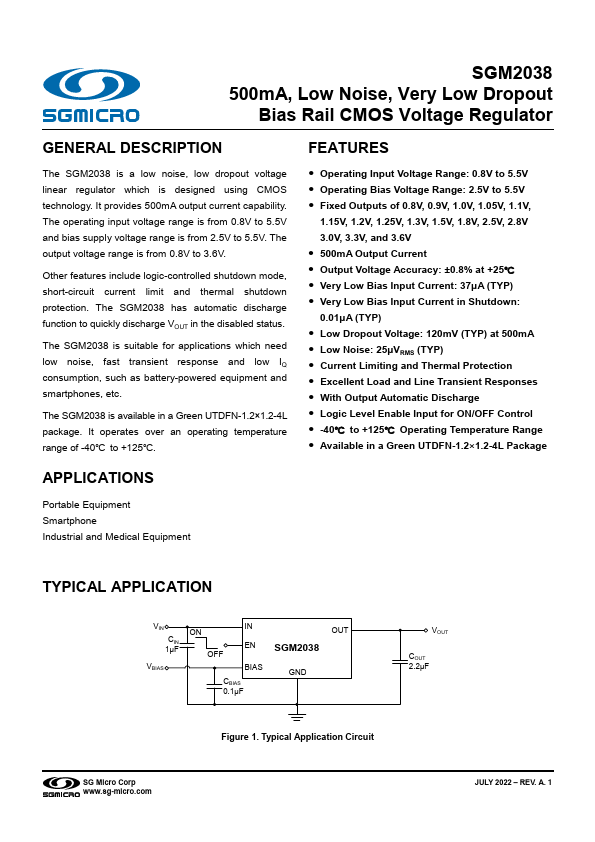

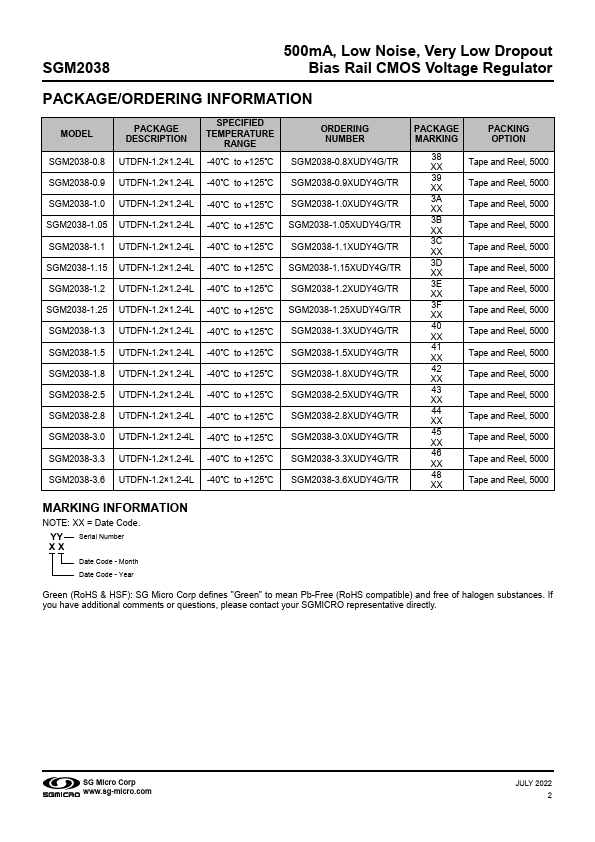

Additional preview pages of the SGM2038 datasheet.

The SGM2038 is a low noise, low dropout voltage linear regulator which is designed using CMOS technology.

include logic-controlled shutdown mode, short-circuit current limit and thermal shutdown protection. The SGM2038 has automatic discharge function to quickly discharge VOUT in the disabled status. The SGM2038 is suitable for.
