SGM2036-0.75 - RF Linear Regulator

Name: SGM2036-0.75
SKU: SGM2036-0.75-1548952

SG Micro

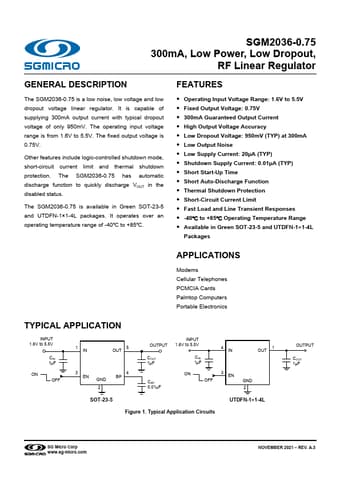

The SGM2036-0.75 by SG Micro is a RF Linear Regulator. Below is the official datasheet preview.

Datasheet Details

Part number	SGM2036-0.75
Manufacturer	SG Micro
File Size	567.99 KB
Description	RF Linear Regulator
Datasheet	SGM2036-0.75-SGMicro.pdf
Additional preview pages of the SGM2036-0.75 datasheet.

The SGM2036-0.75 is a low noise, low voltage and low dropout voltage linear regulator.

include logic-controlled shutdown mode, short-circuit current limit and thermal shutdown protection. The SGM2036-0.75 has automatic discharge function to quickly discharge VOUT in the disabled status. The SGM2036-0.75 is available in Green SOT-23-5 and UTDFN-1×1-4L packages. It operates over an operating temperature range of -40℃ to +85℃.
