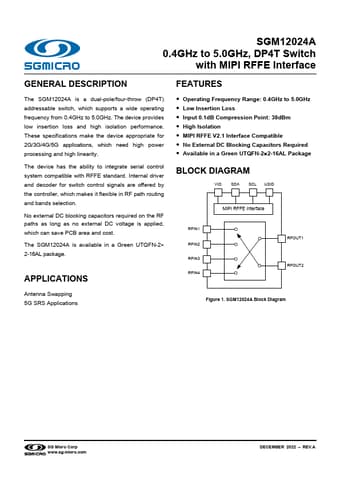

SGM12024A DP4T Switch by SG Micro - Datasheet Preview — Official preview page of the SGM12024A DP4T Switch datasheet (SG Micro).

Datasheet Details

Part number	SGM12024A
Manufacturer	SG Micro
File Size	584.13 KB
Description	DP4T Switch
Datasheet	SGM12024A-SGMicro.pdf
Additional preview pages of the SGM12024A datasheet.

SGM12024A Product details

Description

The SGM12024A is a dual-pole/four-throw (DP4T) addressable switch, which supports a wide operating frequency from 0.4GHz to 5.0GHz.

Features

Operating Frequency Range: 0.4GHz to 5.0GHz.
Low Insertion Loss.
Input 0.1dB Compression Point: 38dBm.
High Isolation.
MIPI RFFE V2.1 Interface Compatible.
No External DC Blocking Capacitors Required.
Available in a Green UTQFN-2×2-16AL Package BLOCK.
