DB105, DB101 - 1.0A Single-Phase Glass Passivated Bridge Rectifiers

📥 Download Datasheet

DB105 Datasheet Preview — This datasheet PDF includes multiple part numbers: DB105, DB101. Please refer to the document for exact specifications by model.

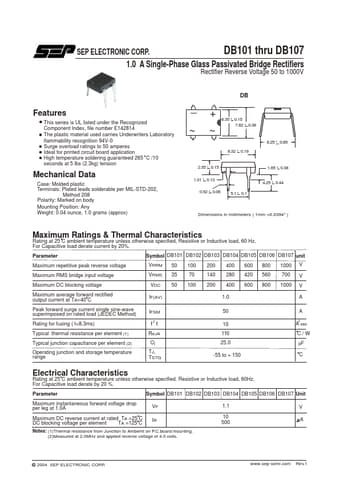

datasheet Preview Page 2

Datasheet Details

Part number	DB105, DB101
Manufacturer	SEP ELECTRONIC
File Size	42.05 KB
Description	1.0A Single-Phase Glass Passivated Bridge Rectifiers
Datasheet	DB101-SEPELECTRONIC.pdf
Note	This datasheet PDF includes multiple part numbers: DB105, DB101. Please refer to the document for exact specifications by model.

DB105 Product details

Features

This series is UL listed under the Recognized Component Index, file number E142814 The plastic material used carries Underwriters Laboratory flammability recognition 94V-0 Surge overload ratings to 50 amperes Ideal for printed circuit board.
