DB151S - SINGLE-PHASE GLASS PASSIVATED SILICON SURFACE MOUNT BRIDGE RECTIFIERS

Product Overview

SEMTECH

Part number	DB151S
Manufacturer	SEMTECH
File Size	225.42 KB
Description	SINGLE-PHASE GLASS PASSIVATED SILICON SURFACE MOUNT BRIDGE RECTIFIERS
Datasheet	DB151S Datasheet

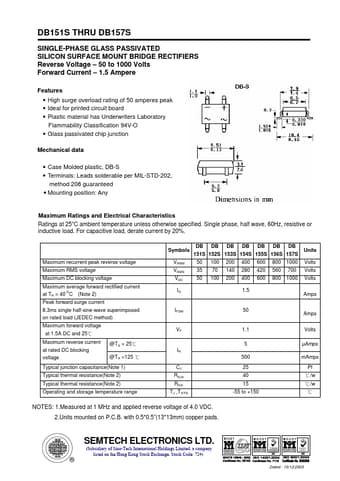

Additional preview pages of the DB151S datasheet.

High surge overload rating of 50 amperes peak.
Ideal for printed circuit board.
Plastic material has Underwriters Laboratory Flammability Classification 94V-O.
Glass passivated chip junction Mechanical data.
Case Molded plastic, DB-S.
Terminals: Leads solderable per MIL-STD-202, method 208 guaranteed.
Mounting position: Any Maximum Ratings and Electrical Characteristics Ratings at 25oC ambient temperature unless otherwise specified.
