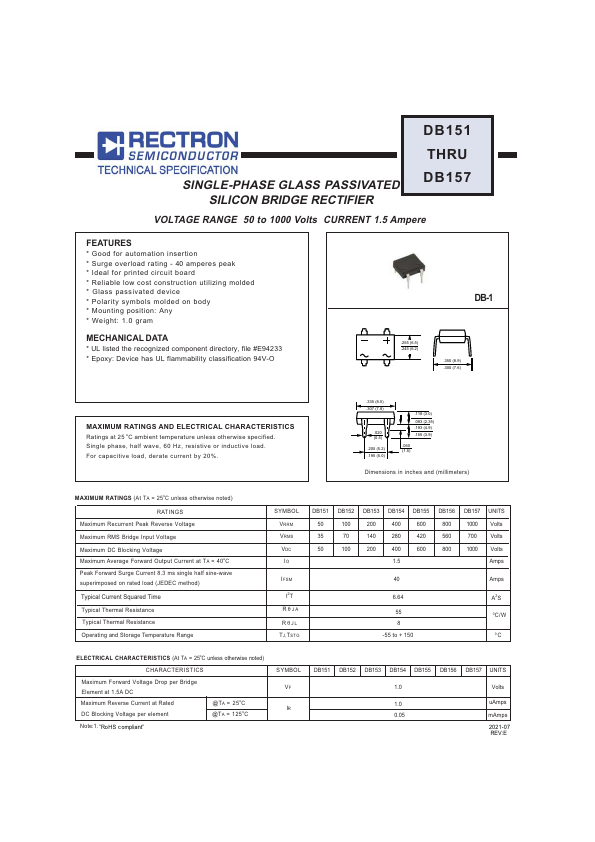

DB151 - SILICON BRIDGE RECTIFIER

Rectron

📥 Download Datasheet

DB151 Datasheet Preview — Preview of DB151 PDF

Datasheet Details

Part number	DB151
Manufacturer	Rectron
File Size	77.90 KB
Description	SILICON BRIDGE RECTIFIER
Datasheet	DB151-Rectron.pdf

DB151 Product details

Description

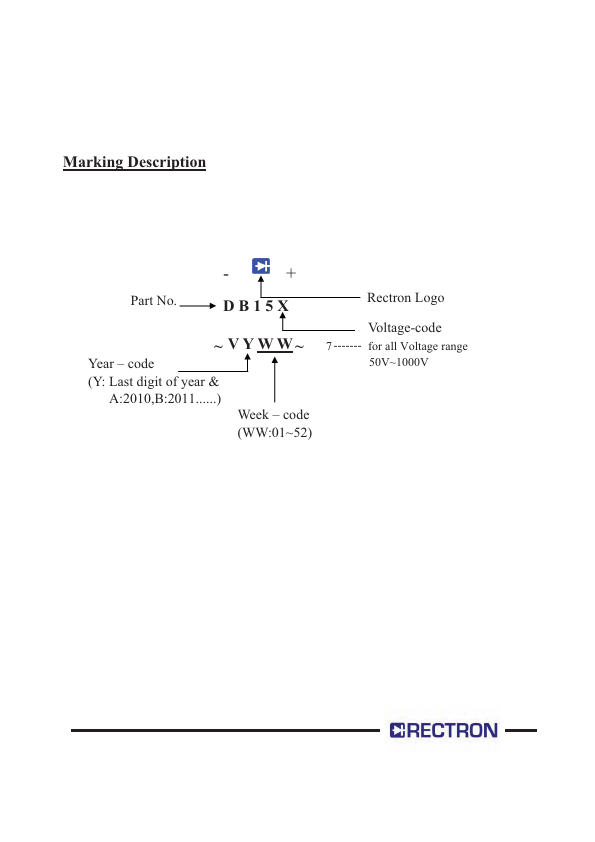

- + Part No.DB15X Rectron Logo ~ VYWW~ Year code (Y: Last digit of year & A:2010,B:2011) Week code (WW:01~52) Voltage-code 7 ------- for all Voltage range 50V~1000V PACKAGING OF DIODE AND BRIDGE RECTIFIERS TUBE PACK PACKAGE DB-1 PACKING CODE -C EA PER BOX 2,500 INNER BOX SIZE (mm) 440 130 65 CARTON SIZE EA PER CARTON (mm) 460 290 150 10,000 WEIGHT(Kg) 6.80 DISCLAIMER NOTICE Rectron Inc reserves the right to make changes without notice to any

Features

Good for automation insertion.
Surge overload rating - 40 amperes peak.
Ideal for printed circuit board.
Reliable low cost construction utilizing molded.
Glass passivated device.
Polarity symbols molded on body.
Mounting position: Any.
Weight: 1.0 gram.
