DB107S - SINGLE-PHASE GLASS PASSIVATED SILICON SURFACE MOUNT BRIDGE RECTIFIER

Product Overview

SEMTECH

Part number	DB107S
Manufacturer	SEMTECH
File Size	276.82 KB
Description	SINGLE-PHASE GLASS PASSIVATED SILICON SURFACE MOUNT BRIDGE RECTIFIER
Datasheet	DB107S Datasheet
Note	This datasheet PDF includes multiple part numbers: DB107S, DB101S. Please refer to the document for exact specifications by model.

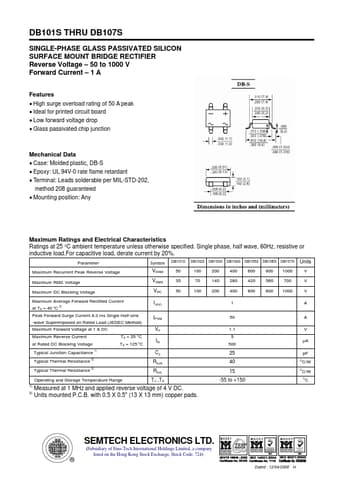

Additional preview pages of the DB107S datasheet.

High surge overload rating of 50 A peak.
Ideal for printed circuit board.
Low forward voltage drop.
Glass passivated chip junction Mechanical Data.
Case: Molded plastic, DB-S.
Epoxy: UL 94V-0 rate flame retardant.
Terminal: Leads solderable per MIL-STD-202, method 208 guaranteed.
Mounting position: Any Maximum Ratings and Electrical Characteristics Ratings at 25 OC ambient temperature unless otherwise specified. Single pha.
