2SC2901 - NPN Silicon Epitaxial Planar Transistor

Name: 2SC2901
SKU: 2SC2901-965403

SEMTECH

The 2SC2901 by SEMTECH is a NPN Silicon Epitaxial Planar Transistor. Below is the official datasheet preview.

Datasheet Details

Part number	2SC2901
Manufacturer	SEMTECH
File Size	510.61 KB
Description	NPN Silicon Epitaxial Planar Transistor
Datasheet	2SC2901-SEMTECH.pdf

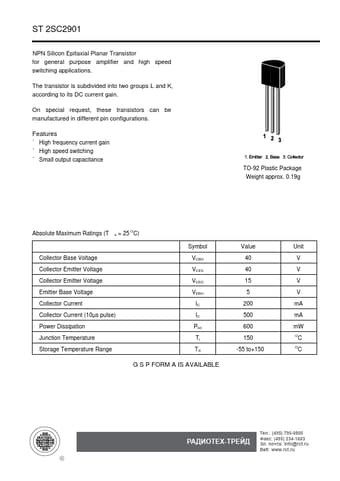

Additional preview pages of the 2SC2901 datasheet.

˙ High frequency current gain ˙ High speed switching ˙ Small output capacitance TO-92 Plastic Package Weight approx. 0.19g Absolute Maximum Ratings (T a = 25 OC) Collector Base Voltage Collector Emitter Voltage Collector Emitter Voltage Emitter Base Voltage Collector Current Collector Current (10µs pulse) Power Dissipation Junction Temperature Storage Temperature Range Symbol VCBO VCES VCEO VEBO IC IC Ptot Tj TS G S P FORM A IS.
