MMBTSB1689W - NPN Transistor

📥 Download Datasheet

Datasheet Details

Part number MMBTSB1689W
Manufacturer SEMTECH ELECTRONICS
File Size 167.16 KB
Description NPN Transistor
Datasheet download datasheet MMBTSB1689W Datasheet

📁 Similar Datasheet

  • MMBTSC2412 - NPN Transistor (PJ)
  • MMBTSC3875 - NPN Silicon Epitaxial Planar Transistor (Bluecolour)
  • MMBTSC3875 - NPN Silicon Epitaxial Planar Transistor (PACO)
  • MMBTSD2114 - NPN Transistor (SEMTECH)
  • MMBT100 - NPN General Purpose Amplifier (Fairchild)
  • MMBT100A - NPN General Purpose Amplifier (Fairchild)
  • MMBT1010LT1 - Low Saturation Voltage (Leshan Radio Company)
  • MMBT1010LT1 - PNP Silicon Driver Transistors (Motorola)
  • MMBT1010LT1 - Low Saturation Voltage (E-Tech)
  • MMBT1010T1 - PNP GENERAL PURPOSE DRIVER TRANSISTORS SURFACE MOUNT (ON)
Other Datasheets by SEMTECH ELECTRONICS

Full PDF Text Transcription

Click to expand full text

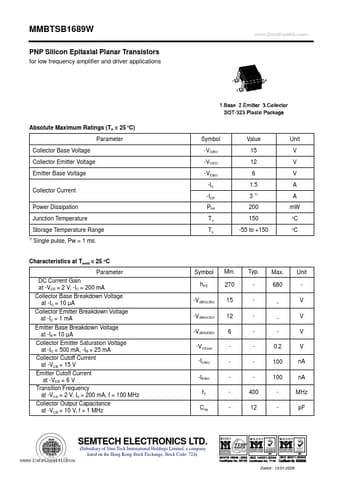

MMBTSB1689W PNP Silicon Epitaxial Planar Transistors for low frequency amplifier and driver applications www.DataSheet4U.com Absolute Maximum Ratings (Ta = 25 OC) Parameter Collector Base Voltage Collector Emitter Voltage Emitter Base Voltage Collector Current Power Dissipation Junction Temperature Storage Temperature Range 1) Symbol -VCBO -VCEO -VEBO -IC -ICP Ptot TJ Ts Value 15 12 6 1.5 3 1) Unit V V V A A mW O 200 150 -55 to +150 C C O Single pulse, Pw = 1 ms.
