SIOLSV2 - Current Sensors

SEC

The SIOLSV2 by SEC is a Current Sensors. Below is the official datasheet preview.

📥 Download Datasheet

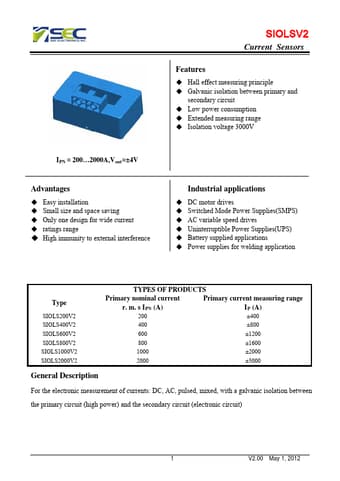

SIOLSV2 Current Sensors by SEC - Datasheet Preview — Official preview page of the **SIOLSV2** Current Sensors datasheet (SEC).

Datasheet Details

Part number	SIOLSV2
Manufacturer	SEC
File Size	312.90 KB
Description	Current Sensors
Datasheet	SIOLSV2_SEC.pdf
Additional preview pages of the SIOLSV2 datasheet.

SIOLSV2 Product details

Description

For the electronic measurement of currents: DC, AC, pulsed, mixed, with a galvanic isolation between the primary circuit (high power) and the secondary circuit (electronic circuit) 1 V2.00 May 1, 2012 Datasheet pdf - http://www.DataSheet4U.co.kr/ SIOLSV2 Current Sensors Parameters Table PARAMETERS Supply voltage(±5%)(1) Current consumption Output voltage Isolation resistance Output internal resistance Load resistance(2) Linearity(3)(0…±I PN ) Accuracy Electrical offset voltage Hysteresis of

Features

Hall effect measuring principle.
Galvanic isolation between primary and secondary circuit.
Low power consumption.
Extended measuring range.
Isolation voltage 3000V I PN = 200…2000A,V out =±4V Advantages.
Easy installation Small size and space saving Only one design for wide current ratings range.
High immunity to external interference.
Industrial.
