SIO1007 - LPC Super I/O LPC IrDA Hot Docking Chip

Name: SIO1007
SKU: SIO1007-974307

Microchip

The SIO1007 by Microchip is a LPC Super I/O LPC IrDA Hot Docking Chip. Below is the official datasheet preview.

Datasheet Details

Part number	SIO1007
Manufacturer	Microchip
File Size	541.98 KB
Description	LPC Super I/O LPC IrDA Hot Docking Chip
Datasheet	SIO1007-Microchip.pdf

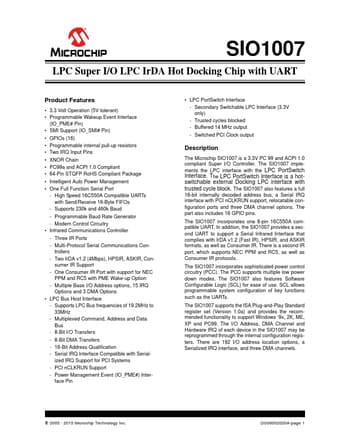

Additional preview pages of the SIO1007 datasheet.

The Microchip SIO1007 is a 3.3V PC 99 and ACPI 1.0 compliant Super I/O Controller.

3.3 Volt Operation (5V tolerant).
Programmable Wakeup Event Interface (IO_PME# Pin).
SMI Support (IO_SMI# Pin).
GPIOs (16).
Programmable internal pull-up resistors.
Two IRQ Input Pins.
XNOR Chain.
PC99a and ACPI 1.0 Compliant.
64-Pin STQFP RoHS Compliant Package.
Intelligent Auto Power Management.
One Full Function Serial Port - High Speed 16C550A Compatible UARTs with Send/Receive 16-Byte FIFOs -.
