RU1H130Q - N-Channel Advanced Power MOSFET

Ruichips

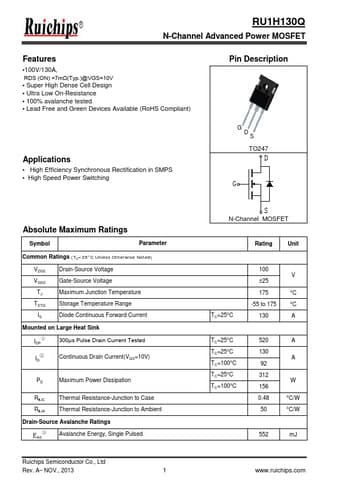

RU1H130Q Datasheet Preview — Preview of RU1H130Q PDF

Datasheet Details

Part number	RU1H130Q
Manufacturer	Ruichips
File Size	277.55 KB
Description	N-Channel Advanced Power MOSFET
Datasheet	RU1H130Q-Ruichips.pdf

RU1H130Q Product details

Description

G D S TO247 D G Absolute Maximum Ratings Symbol Parameter Common Ratings (TC=25°C Unless Otherwise Noted) VDSS Drain-Source Voltage VGSS Gate-Source Voltage TJ Maximum Junction Temperature TSTG Storage Temperature Range IS Diode Continuous Forward Current Mounted on Large Heat Sink ① IDP 300μs Pulse Drain Current Tested ② ID Continuous Drain Current(VGS=10V) PD Maximum Power Dissipation RθJC Thermal Resistance-Junction to Case RθJA Thermal Resistance-Junction to Ambient Drain

Features

100V/130A, RDS (ON) =7mΩ(Typ. )@VGS=10V.
Super High Dense Cell Design.
Ultra Low On-Resistance.
100% avalanche tested.
Lead Free and Green Devices Available (RoHS Compliant).
