G081PU11500M - High Power Fiber Coupled Infrared Laser Diode

Features

  • CW Output Power: 1.5 W.
  • Typical 808 nm Emission Wavelength.
  • High Reliability.
  • High Efficiency.

📥 Download Datasheet

Datasheet Details

Part number G081PU11500M
Manufacturer Roithner
File Size 216.58 KB
Description High Power Fiber Coupled Infrared Laser Diode
Datasheet download datasheet G081PU11500M Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
G080N10 N-Channel Enhancement Mode Power MOSFET GOFORD
G080N10T N-Channel Enhancement Mode Power MOSFET GOFORD
G080Y1-T01 TFT LCD Module Chi Mei
G084SN02-V0 LCD Module AUO
G084SN03-V0 TFT LCD AUO

Other Datasheets by Roithner

Part Number Description
G081PU1600M High Power Fiber Coupled Infrared Laser Diode
G081PU1750M High Power Fiber Coupled Infrared Laser Diode
G081PU210W High Power Fiber Coupled Infrared Laser Diode
G081PU25W High Power Fiber Coupled Infrared Laser Diode
G081PU312W High Power Fiber Coupled Infrared Laser Diode

Full PDF Text Transcription

Click to expand full text

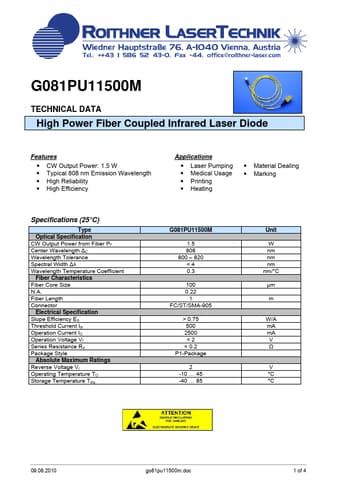

G081PU11500M TECHNICAL DATA High Power Fiber Coupled Infrared Laser Diode Features • CW Output Power: 1.5 W • Typical 808 nm Emission Wavelength • High Reliability • High Efficiency Applications • Laser Pumping • Medical Usage • Printing • Heating • Material Dealing • Marking Specifications (25°C) Type Optical Specification CW Output Power from Fiber PF Center Wavelength ΔC Wavelength Tolerance Spectral Width Δλ Wavelength Temperature Coefficient Fiber Characteristics Fiber Core Size N.A. Fiber Length Connector Electrical Specification Slope Efficiency ES Threshold Current Ith Operation Current IO Operation Voltage Vf Series Resistance Rd Package Style Absolute Maximum Ratings Reverse Voltage Vr Operating Temperature TO Storage Temperature Tstg G081PU11500M 1.5 808 800 – 820 <4 0.
