VDZ3.6B - Zener diode

Product Overview

Rohm

📥 Download Datasheet

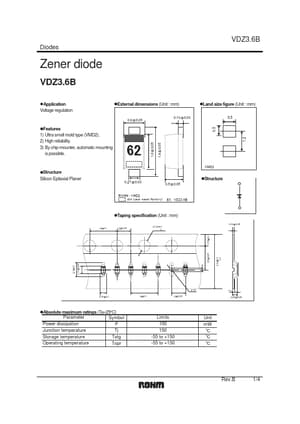

VDZ3.6B Zener diode by Rohm - Datasheet Preview — Datasheet preview – VDZ3.6B

Datasheet Details

Part number	VDZ3.6B
Manufacturer	ROHM
File Size	130.37 KB
Description	Zener diode
Datasheet	VDZ3.6B Datasheet
Additional preview pages of the VDZ3.6B datasheet.

Product details

Features

1) Ultra small mold type (VMD2). 2) High reliability. 3) By chip-mounter, automatic mounting is possible. zLand size figure (Unit : mm) zStructure Silicon Epitaxial Planer zStructure zTaping specification (Unit : mm) zAbsolute maximum ratings (Ta=25qC) Parameter Symbol Power dissipation P Junction temperature Tj Storage temperature Tstg Operating temperature Topr Limits 100 150 -55 to +150 -55 to +150 Unit mW Rev. B 1/4 Diodes zElectr.
