VDZ3.9B - SOD-723 Plastic-Encapsulate Diodes

Download the VDZ3.9B datasheet PDF (VDZ3.6B included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for sod-723 plastic-encapsulate diodes.

Features

  • z Ultra small mold type z High reliability z By chip-mounter ,automatic mounting is possible SOD-723 -.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (VDZ3.6B-JCET.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number VDZ3.9B
Manufacturer JCET
File Size 654.83 KB
Description SOD-723 Plastic-Encapsulate Diodes
Datasheet download datasheet VDZ3.9B Datasheet

📁 Similar Datasheet

Other Datasheets by JCET
  • VDZ3.6B - SOD-723 Plastic-Encapsulate Diodes
  • VDZ30B - SOD-723 Plastic-Encapsulate Diodes
  • VDZ33B - SOD-723 Plastic-Encapsulate Diodes
  • VDZ36B - SOD-723 Plastic-Encapsulate Diodes
  • VDZ10B - SOD-723 Plastic-Encapsulate Diodes
  • VDZ11B - SOD-723 Plastic-Encapsulate Diodes
  • VDZ12B - SOD-723 Plastic-Encapsulate Diodes
  • VDZ13B - SOD-723 Plastic-Encapsulate Diodes

Full PDF Text Transcription

Click to expand full text

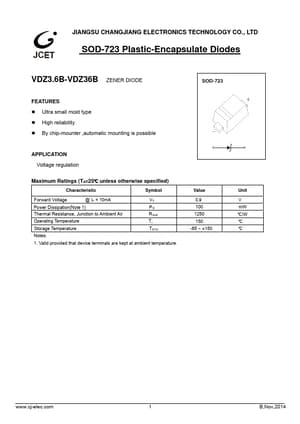

JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD SOD-723 Plastic-Encapsulate Diodes VDZ3.6B-VDZ36B ZENER DIODE FEATURES z Ultra small mold type z High reliability z By chip-mounter ,automatic mounting is possible SOD-723 - APPLICATION Voltage regulation Maximum Ratings (Ta=25℃ unless otherwise specified) Characteristic Symbol Forward Voltage @ IF = 10mA Power Dissipation(Note 1) Thermal Resistance, Junction to Ambient Air Operating Temperature Storage Temperature Notes: VF PD R θJA Tj TSTG 1. Valid provided that device terminals are kept at ambient temperature. Value 0.9 100 1250 150 -65 ~ +150 Unit V mW ℃/W ℃ ℃ www.cj-elec.com 1 B,Nov,2014 ELECTRICAL CHARACTERISTICS Ta=25℃ unless otherwise specified Type Number VDZ3.6B VDZ3.9B VDZ4.3B VDZ4.7B VDZ5.1B VDZ5.6B VDZ6.
