SML-311 - Chip LEDs

Name: SML-311
SKU: SML-311-336417

Rohm

The SML-311 by Rohm is a Chip LEDs. Below is the official datasheet preview.

Datasheet Details

Part number	SML-311
Manufacturer	ROHM
File Size	73.33 KB
Description	Chip LEDs
Datasheet	SML-311_Rohm.pdf

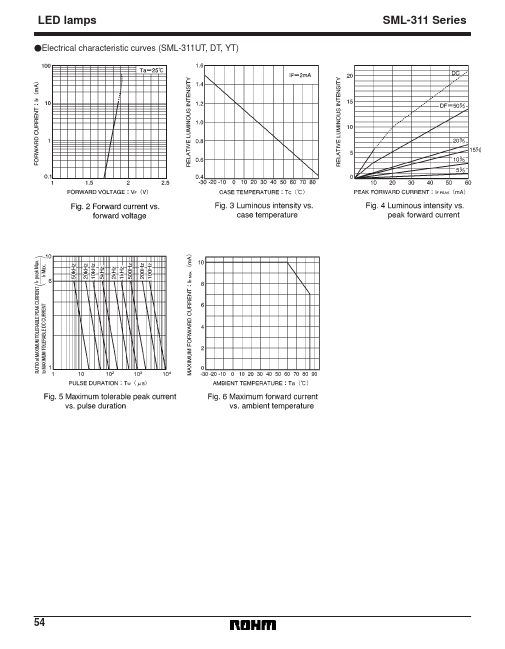

Additional preview pages of the SML-311 datasheet.

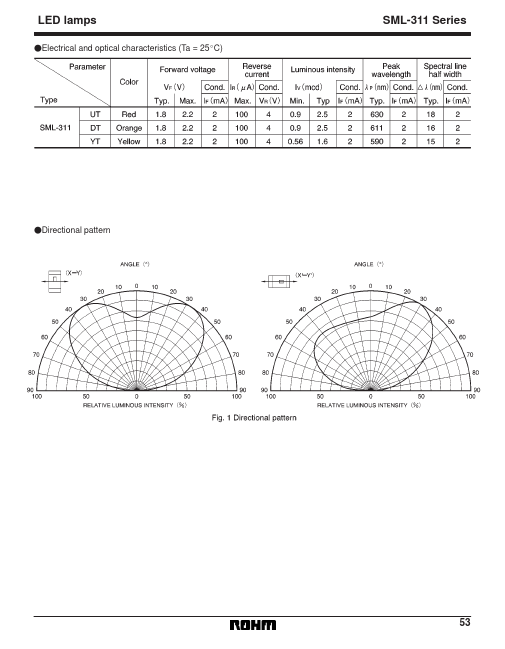

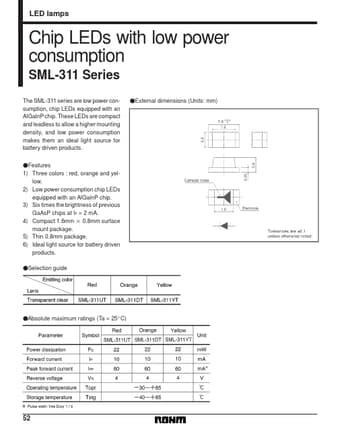

1) Three colors : red, orange and yellow. 2) Low power consumption chip LEDs equipped with an AlGalnP chip. 3) Six times the brightness of previous GaAsP chips at IF = 2 mA. 4) Compact 1.6mm 0.8mm surface mount package. 5) Thin 0.8mm package. 6) Ideal light source for battery driven products. FSelection guide FExternal dimensions (Units: mm) FAbsolute maximum ratings (Ta = 25_C) 52 LED lamps FElectrical and optical characteristics (Ta = 25_C) SML-311 Series FDirectional pattern 53 LED lam.
