SML-012 Chip LEDs

SML-012 Description

SML-011 / 012 series Light Emitting Diodes Chip LEDs with reflectors SML-011 / 012 series The SML-011 / 012 series are ultra high luminance chip LEDs.

SML-012 Features

* 1) Reflectors are used to achieve a high luminance. 2) Two series : SML-011, SML-012 Three colors : red, orange and yellow 3) Rectangular and leadless (3×2mm). 4) Can be mounted by automatic mounting. !External dimensions (Unit : mm) 3.0 2.3 0.2 1.3 +
* 0.1 0.3 0.5 2.0 1.6 Through hole Cat

📥 Download Datasheet

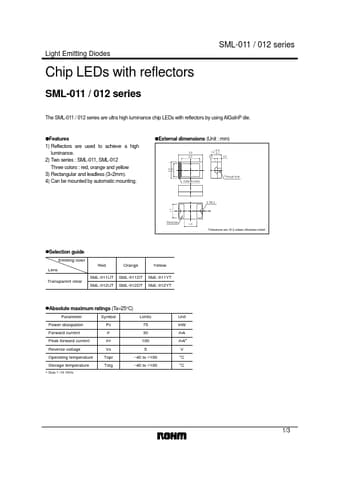

SML-012 Datasheet Preview — Preview of SML-012 PDF

Datasheet Details

Part number: SML-012
Manufacturer: ETC
File Size: 27.36 KB
Datasheet: SML-012_ETC.pdf
Description: Chip LEDs
