RSB6.8F2, RSB68F2 Bi-Directional Zener Diodes

RSB6.8F2 Description

www.DataSheet4U.com RSB6.8F2 Diodes Bi-Directional Zener Diodes RSB6.8F2 zOutline RSB6.8F2 is a bi-directional zener diode having two zeners confron.

RSB6.8F2 Features

* 1) Absorption of plus & minus surge with one package. 2) Decrease of components and space-saving on the circuit board. 2.0±0.2 zStructure (3) (2) (1) z Absolute maximum ratings (Ta=25qC) Parameter Power dissipation (
* 1) Junction temperature Operation temperature range (
* 1) Total of 2 e

RSB6.8F2 Applications

* In general, two pieces of zener diodes are used as ESD protector to absorb the surge in +/ - directions. Paying attention to this point and using its original technology, ROHM succeeded to incorporate 2 zeners in one die / package for benefit of space-saving on the circuit board. zDimensions(Unit :

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: RSB6.8F2, RSB68F2. Please refer to the document for exact specifications by model.

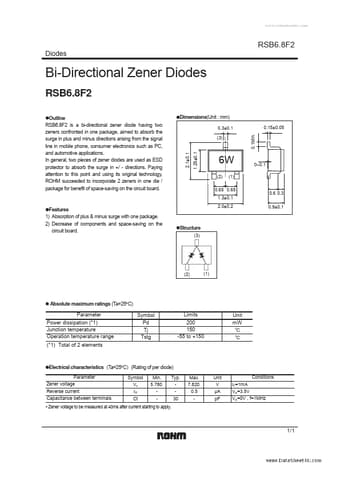

datasheet Preview Page 2

Datasheet Details

Part number
RSB6.8F2, RSB68F2
Manufacturer
ROHM ↗
File Size
126.69 KB
Datasheet
RSB68F2_Rohm.pdf
Description
Bi-Directional Zener Diodes
Note
This datasheet PDF includes multiple part numbers: RSB6.8F2, RSB68F2.
Please refer to the document for exact specifications by model.
