RSB6.8G, RSB68G LOW CAPACITANCE TVS ARRAY

RSB6.8G Description

05249 Only One Name Means ProTek’Tion™ LOW CAPACITANCE TVS ARRAY RSB6.8G .
The RSB6.

RSB6.8G Features

* Compatible with IEC 61000-4-2 (ESD): Air - 15kV, Contact - 8kV
* Compatible with IEC 61000-4-4 (EFT): 40A - 5/50ns
* 10 Watts Peak Pulse Power per Line (tp = 10/1000µs)
* Replacement for MLV (0805)
* Bidirectional Configuration
* Protects One D

RSB6.8G Applications

* such as portable electronics and SMART phones. This device is available in a bidirectional configuration and is rated at 10 Watts for an 10/1000µs waveshape. The RSB6.8G meets IEC 61000-4-2 (ESD) and IEC 61000-4-4 (EFT) requirements. At higher operating frequencies or faster edge rates, insertion lo

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: RSB6.8G, RSB68G. Please refer to the document for exact specifications by model.

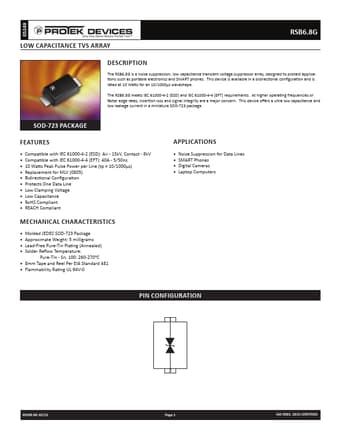

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RSB6.8G, RSB68G
Manufacturer
Protek Devices
File Size
366.46 KB
Datasheet
RSB68G_ProtekDevices.pdf
Description
LOW CAPACITANCE TVS ARRAY
Note
This datasheet PDF includes multiple part numbers: RSB6.8G, RSB68G.
Please refer to the document for exact specifications by model.
