RPM970-H14 - IrDA Infrared Communication Module

Rohm

📥 Download Datasheet

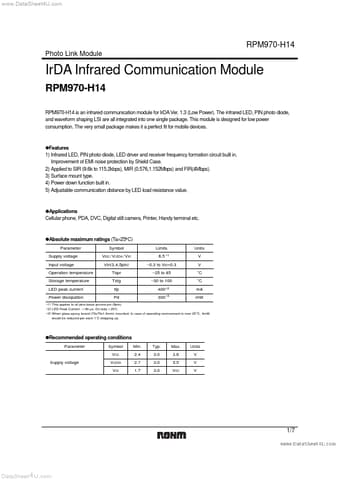

RPM970-H14 Datasheet Preview — Preview of RPM970-H14 PDF

Datasheet Details

Part number	RPM970-H14
Manufacturer	ROHM
File Size	238.31 KB
Description	IrDA Infrared Communication Module
Datasheet	RPM970-H14_Rohm.pdf

RPM970-H14 Product details

Description

Pin No Terminal Circuit Function LED Anode Terminal Other power source can be used difference between LEDVCC and VCC.LED current depends on LED load resistance value.Include internal current limiter (max.400mA).LED Cathode Terminal 1 1 LEDA LED 2 2 LEDC VIO This terminal must be left open.Transmitting Data Input Terminal H:LED radiant (PWDOWN='L') CMOS Logic Level Input.Holding TXD="H"status, LED will be turn off approximately 48 µs.Receiving Data Output Terminal 3 TXD 600k VIO PWD

Features

1) Infrared LED, PIN photo diode, LED driver and receiver frequency formation circuit built in. Improvement of EMI noise protection by Shield Case. 2) Applied to SIR (9.6k to 115.2kbps), MIR (0.576,1.152Mbps) and FIR(4Mbps). 3) Surface mount type. 4) Power down function built in. 5) Adjustable communication distance by LED load resistance value. z.
