RPM960-H14 - IrDA Infrared Communication Module

Rohm

The RPM960-H14 by Rohm is a IrDA Infrared Communication Module. Below is the official datasheet preview.

📥 Download Datasheet

RPM960-H14 IrDA Infrared Communication Module by Rohm - Datasheet Preview — Official preview page of the **RPM960-H14** IrDA Infrared Communication Module datasheet (Rohm).

Datasheet Details

Part number	RPM960-H14
Manufacturer	ROHM
File Size	219.27 KB
Description	IrDA Infrared Communication Module
Datasheet	RPM960-H14_Rohm.pdf

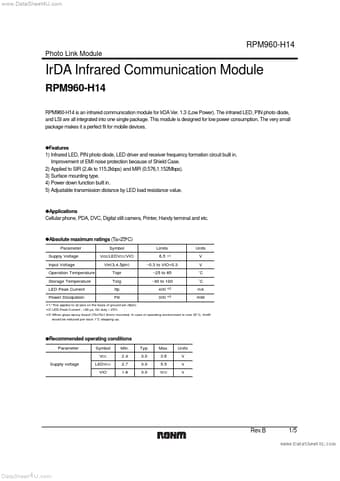

Additional preview pages of the RPM960-H14 datasheet.

RPM960-H14 Product details

Description

Pin No Terminal Circuit Function LED Anode Terminal Other power source can be used difference between LEDVCCand VCC.LED current depends on LED load resistance value.Include internal current limiter (max.400mA).LED Cathode Terminal 1 1 LEDA LED 2 2 LEDC VIO This terminal must be left open.Transmitting Data Input Terminal H:LED radiant (PWDOWN='L') CMOS Logic Level Input.Holding TXD="H"status, LED will be turned off at approximately 48 µs.Receiving Data Output Terminal 3 TXD 600k

Features

1) Infrared LED, PIN photo diode, LED driver and receiver frequency formation circuit built in. Improvement of EMI noise protection because of Shield Case. 2) Applied to SIR (2.4k to 115.2kbps) and MIR (0.576,1.152Mbps). 3) Surface mounting type. 4) Power down function built in. 5) Adjustable transmission distance by LED load resistance value. z.
