RB520CS-30 - Schottky barrier diode

Rohm

📥 Download Datasheet

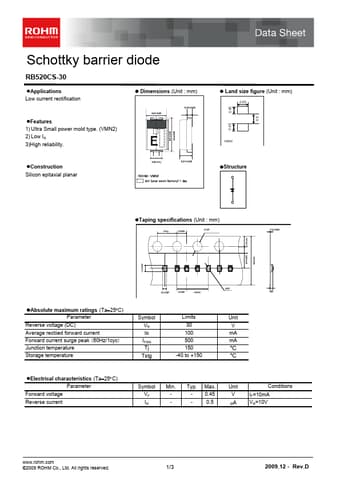

RB520CS-30 Datasheet Preview — Preview of RB520CS-30 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	RB520CS-30
Manufacturer	ROHM
File Size	404.32 KB
Description	Schottky barrier diode
Datasheet	RB520CS-30_Rohm.pdf

RB520CS-30 Product details

Features

1) Ultra Small power mold type. (VMN2) 2) Low IR 3)High reliability. zConstruction Silicon epitaxial planar 0.45 0.45 0.5 z Land size figure (Unit : mm) 0.55 VMN2 zStructure zTaping specifications (Unit : mm) zAbsolute maximum ratings (Ta=25°C) Parameter Reverse voltage (DC) Average rectiied forward current Forward current surge peak （60Hz/1cyc） Junction temperature Storage temperature Symbol VR Io IFSM Tj Tstg Limits 30 100 500 150 -40 to +150 Unit V mA mA °C °C zElectrical characteris.
