RB520G30-G - SMD Schottky Barrier Diode

Name: RB520G30-G
SKU: RB520G30-G-594950

Comchip Technology

The RB520G30-G by Comchip Technology is a SMD Schottky Barrier Diode. Below is the official datasheet preview.

Datasheet Details

Part number	RB520G30-G
Manufacturer	Comchip Technology
File Size	77.91 KB
Description	SMD Schottky Barrier Diode
Datasheet	RB520G30-G_ComchipTechnology.pdf

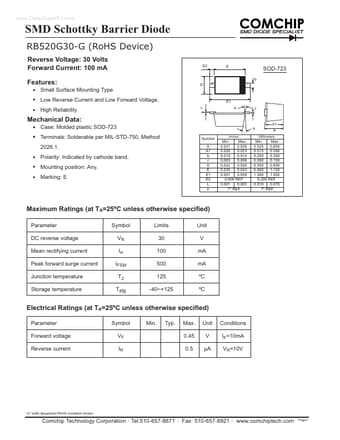

Additional preview pages of the RB520G30-G datasheet.

Small Surface Mounting Type Low Reverse Current and Low Forward Voltage. High Reliability L E1 θ c E2 E b D + - SOD-723 Mechanical Data: Case: Molded plastic SOD-723 Terminals: Solderable per MIL-STD-750, Method 2026.1. Polarity: Indicated by cathode band. Mounting position: Any. Marking: E Symbol A A1 b c D E E1 E2 L θ Inches θ Min. Max. 0.021 0.026 0.020 0.023 0.010 0.014 0.003 0.006 0.022 0.026 0.035 0.043 0.051 0.059 0.008 REF 0.003 0.001 7º REF A1 A Millimeters Min. Max. 0.525 0.650 0.
