QSZ3 - General purpose transistor

Name: QSZ3
SKU: QSZ3-613622

Rohm

The QSZ3 by Rohm is a General purpose transistor. Below is the official datasheet preview.

Datasheet Details

Part number	QSZ3
Manufacturer	ROHM
File Size	130.21 KB
Description	General purpose transistor
Datasheet	QSZ3_Rohm.pdf

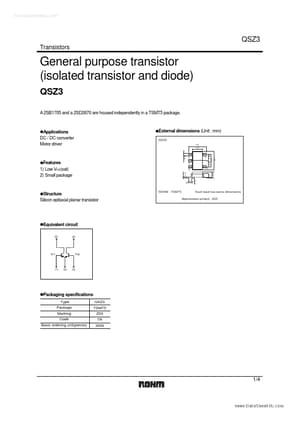

Additional preview pages of the QSZ3 datasheet.

1) Low VCE(sat) 2) Small package 0.16 (3) (4) 0.3∼0.6 zStructure Silicon epitaxial planar transistor ROHM : TSMT5 Abbreviated symbol : Z03 zEquivalent circuit (5) (4) Tr1 Tr2 (1) (2) (3) zPackaging specifications Type QSZ3 TSMT5 Z03 TR 3000 Package Marking Code Basic ordering unit(pieces) 0∼0.1 Each lead has same dimensions 0.85 0.7 0.95 0.95 1.9 2.9 0.4 (2) (1) (5) 1/4 www. DataSheet4U. com QSZ3 Transistors zAbsolute maximum ratings (Ta=25°C) Tr1 Parameter Collector-bas.
