QSZ2 - General purpose transistor

Name: QSZ2
SKU: QSZ2-356783

Rohm

The QSZ2 by Rohm is a General purpose transistor. Below is the official datasheet preview.

Datasheet Details

Part number	QSZ2
Manufacturer	ROHM
File Size	90.05 KB
Description	General purpose transistor
Datasheet	QSZ2_Rohm.pdf
Additional preview pages of the QSZ2 datasheet.

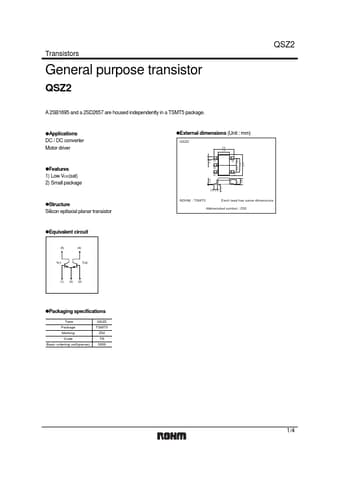

1) Low VCE(sat) 2) Small package 0.16 (3) (4) 0.3∼0.6 zStructure Silicon epitaxial planar transistor ROHM : TSMT5 Abbreviated symbol : Z02 zEquivalent circuit (5) (4) Tr1 Tr2 (1) (2) (3) zPackaging specifications Type Package Marking Code Basic ordering unit(pieces) QSZ2 TSMT5 Z02 TR 3000 0∼0.1 Each lead has same dimensions 0.85 0.7 0.95 0.95 1.9 2.9 0.4 (2) (1) (5) 1/4 QSZ2 Transistors zAbsolute maximum ratings (Ta=25°C) Tr1 Parameter Collector-base voltage Collector-e.
