LUM-512CD300 - dot matrix unit

Rohm

📥 Download Datasheet

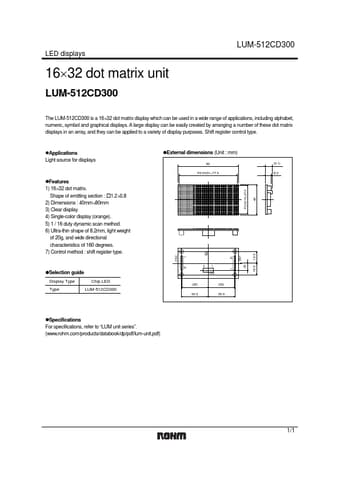

LUM-512CD300 Datasheet Preview — Preview of LUM-512CD300 PDF

datasheet Preview Page 2

Datasheet Details

Part number	LUM-512CD300
Manufacturer	ROHM
File Size	72.17 KB
Description	dot matrix unit
Datasheet	LUM-512CD300_Rohm.pdf

LUM-512CD300 Product details

Features

1) 16×32 dot matrix. Shape of emitting section : 1.2×0.8 2) Dimensions : 40mm×80mm 3) Clear display. 4) Single-color display (orange). 5) 1 / 16 duty dynamic scan method. 6) Ultra-thin shape of 8.2mm, light weight of 20g, and wide directional characteristics of 160 degrees. 7) Control method : shift register type. 1 P2.5X15=37.5 10 40 1/1 Appendix Notes No technical content pages of this document may be reproduced in any form or transmitted by any means without prior permission of ROHM CO.
