LM-2512 - 16 x 32 matrix display

Rohm

📥 Download Datasheet

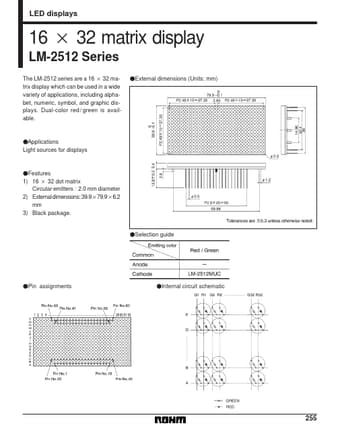

LM-2512 Datasheet Preview — Preview of LM-2512 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	LM-2512
Manufacturer	ROHM
File Size	79.36 KB
Description	16 x 32 matrix display
Datasheet	LM-2512_Rohm.pdf

LM-2512 Product details

Features

1) 16 32 dot matrix Circular emitters : 2.0 mm diameter 2) External dimensions: 39.9 79.9 6.2 mm 3) Black package. FSelection guide FPin assignments FInternal circuit schematic 255 LED displays FPin assignment table LM-2512 Series FAbsolute maximum ratings (Ta = 25_C) FElectrical and optical characteristics (Ta = 25_C) 256 LED displays FLuminous intensity LM-2512 Series 257.
