LM-2256 - 16 x 16 matrix displays

Datasheet Details

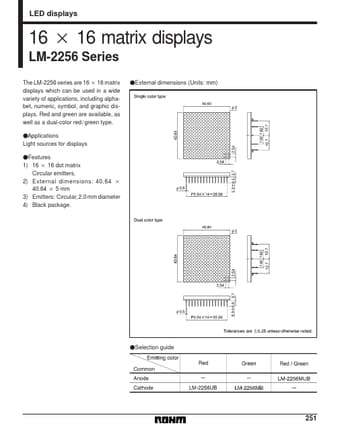

1) 16 16 dot matrix Circular emitters. 2) External dimensions: 40.64 40.64 5 mm 3) Emitters: Circular, 2.0 mm diameter 4) Black package. FSelection guide 251 LED displays FPin assignments LM-2256 Series FInternal circuit schematic 252 LED displays FPin assignment table FSingle-color type LM-2256 Series Dual-color type FAbsolute maximum ratings (Ta = 25_C) FSingle-color type FDual-color type 253 LED displays FElectrical and optical characteristics (Ta = 25_C) FSingle-color type LM-2.
