IMT17 - General purpose dual transistors

Datasheet Details

Part number	IMT17
Manufacturer	ROHM
File Size	90.78 KB
Description	General purpose dual transistors

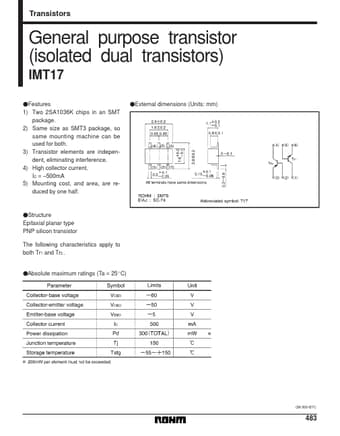

Datasheet	IMT17_Rohm.pdf

1) Two 2SA1036K chips in an SMT package. 2) Same size as SMT3 package, so same mounting machine can be used for both. 3) Transistor elements are independent, eliminating interference. 4) High collector current. IC =.
500mA 5) Mounting cost, and area, are reduced by one half. FExternal dimensions (Units: mm) FStructure Epitaxial planar type PNP silicon transistor The following characteristics apply to both Tr1 and Tr2 . FAbsolute maximum ratings (Ta = 25_C) (96-500-B11) 483 Transisto.
