IMT18 - General purpose transistors

Features

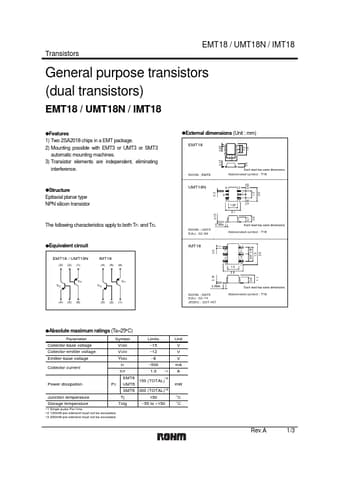

1) Two 2SA2018 chips in a EMT package. 2) Mounting possible with EMT3 or UMT3 or SMT3 automatic mounting machines. 3) Transistor elements are independent, eliminating interference. zExternal dimensions (Unit : mm) (4) (5) (6) (3) (2) 0.13 1.2 1.6 (1) Each lead has same dimensions ROHM : EMT6 Abbreviated symbol : T18 0.65 1.3 0.65 0.7 0.95 0.95 0.8 zStructure Epitaxial planar type NPN silicon transistor (4) UMT18N 0.2 (3) 0.5 0.5 0.5 1.0 1.6 0.22 EMT18 (6) 1.25 2.1 0.15 (1) The.

ROHM

Datasheet Details

Part number	IMT18
Manufacturer	ROHM
File Size	90.96 KB
Description	General purpose transistors
Datasheet	IMT18 Datasheet
Additional preview pages of the IMT18 datasheet.
