DTA144E - Digital transistors

Product Overview

Rohm

📥 Download Datasheet

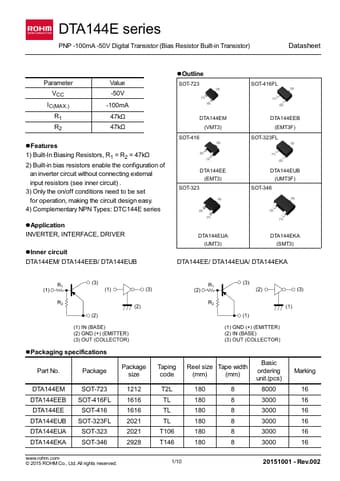

DTA144E Digital transistors by Rohm - Datasheet Preview — Datasheet preview – DTA144E

Datasheet Details

Part number	DTA144E
Manufacturer	ROHM
File Size	1.76 MB
Description	Digital transistors
Datasheet	DTA144E Datasheet
Note	This datasheet PDF includes multiple part numbers: DTA144E, DTA144EKA. Please refer to the document for exact specifications by model.
Additional preview pages of the DTA144E datasheet.

Product details

Features

1) Built-In Biasing Resistors, R1 = R2 = 47kΩ 2) Built-in bias resistors enable the configuration of 　an inverter circuit without connecting external 　input resistors (see inner circuit) . 3) Only the on/off conditions need to be set 　for operation, making the circuit design easy. 4) Complementary NPN Types: DTC144E series l.
