DTA144ECA - PNP Digital Transistor

Download the DTA144ECA datasheet PDF (DTA144EM included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for pnp digital transistor.

Features

  • Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors(see equivalent circuit).
  • The bias resistors consist of thin-film resistors with complete isolation to allow positive biasing of the input. They also have the advantage of almost completely eliminating parasitic effects.
  • Only the on/off conditions need to be set for operation, making device design easy PIN.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (DTA144EM-JCST.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number DTA144ECA
Manufacturer JCST
File Size 408.56 KB
Description PNP Digital Transistor
Datasheet download datasheet DTA144ECA Datasheet

📁 Similar Datasheet

  • DTA144ECA - PNP Small Signal Transistor (Taiwan Semiconductor)
  • DTA144ECA - PNP Digital Transistors (SeCoS)
  • DTA144ECA - PNP Digital Transistor (LGE)
  • DTA144ECA - Digital Transistor (GME)
  • DTA144EC3 - General Purpose PNP Digital Transistors (CYStech Electronics)
  • DTA144E - PNP SILICON BIAS RESISTOR TRANSISTOR (ON Semiconductor)
  • DTA144E - Digital transistors (Rohm)
  • DTA144E - DIGITAL TRANSISTORS (UTC)
  • DTA144EE - Digital Transistor (GME)
  • DTA144EE - PNP Small Signal Transistor (Taiwan Semiconductor)
Other Datasheets by JCST

Full PDF Text Transcription

Click to expand full text

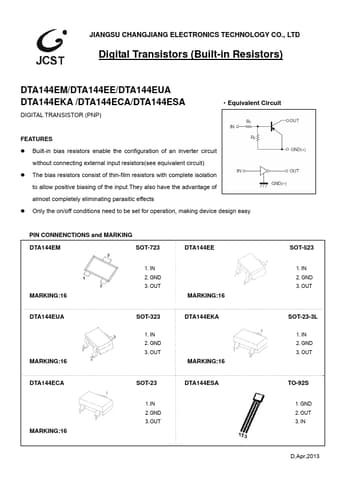

JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD Digital Transistors (Built-in Resistors) DTA144EM/DTA144EE/DTA144EUA DTA144EKA /DTA144ECA/DTA144ESA DIGITAL TRANSISTOR (PNP) ·Equivalent Circuit FEATURES  Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors(see equivalent circuit)  The bias resistors consist of thin-film resistors with complete isolation to allow positive biasing of the input.They also have the advantage of almost completely eliminating parasitic effects  Only the on/off conditions need to be set for operation, making device design easy PIN CONNENCTIONS and MARKING DTA144EM SOT-723 MARKING:16 1. IN 2. GND 3. OUT DTA144EUA MARKING:16 SOT-323 1. IN 2. GND 3. OUT DTA144ECA MARKING:16 SOT-23 1.IN 2.
