DTA143ESA - Digital transistors

Name: DTA143ESA
SKU: DTA143ESA-241400

Rohm

The DTA143ESA by Rohm is a Digital transistors. Below is the official datasheet preview.

Datasheet Details

Part number	DTA143ESA
Manufacturer	ROHM
File Size	70.04 KB
Description	Digital transistors
Datasheet	DTA143ESA_Rohm.pdf

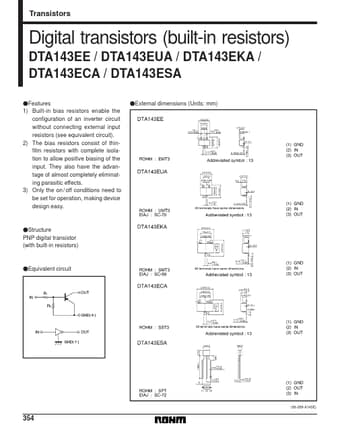

Additional preview pages of the DTA143ESA datasheet.

1) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit). 2) The bias resistors consist of thinfilm resistors with complete isolation to allow positive biasing of the input. They also have the advantage of almost completely eliminating parasitic effects. 3) Only the on / off conditions need to be set for operation, making device design easy. FExternal dimensions (Units: mm) FStructure PNP digital transistor (.
