DTA143ES3 - PNP Digital Transistors

Name: DTA143ES3
SKU: DTA143ES3-1422647

CYStech

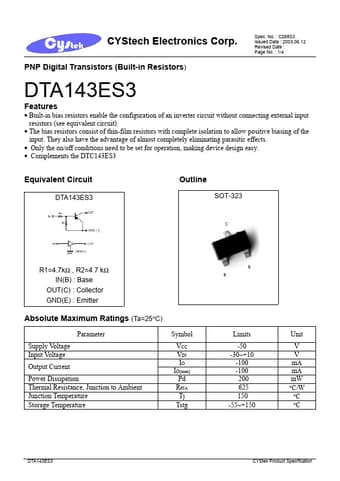

The DTA143ES3 by CYStech is a PNP Digital Transistors. Below is the official datasheet preview.

Datasheet Details

Part number	DTA143ES3
Manufacturer	CYStech
File Size	160.47 KB
Description	PNP Digital Transistors
Datasheet	DTA143ES3-CYStech.pdf
Additional preview pages of the DTA143ES3 datasheet.

Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit).
The bias resistors consist of thin-film resistors with complete isolation to allow positive biasing of the input. They also have the advantage of almost completely eliminating parasitic effects.
Only the on/off conditions need to be set for operation, making device design easy.
Complements the DTC143ES3 Equivalent C.
