DTA143ZS3 - PNP Digital Transistors

Name: DTA143ZS3
SKU: DTA143ZS3-1422936

CYStech

The DTA143ZS3 by CYStech is a PNP Digital Transistors. Below is the official datasheet preview.

Datasheet Details

Part number	DTA143ZS3
Manufacturer	CYStech
File Size	112.83 KB
Description	PNP Digital Transistors
Datasheet	DTA143ZS3-CYStech.pdf

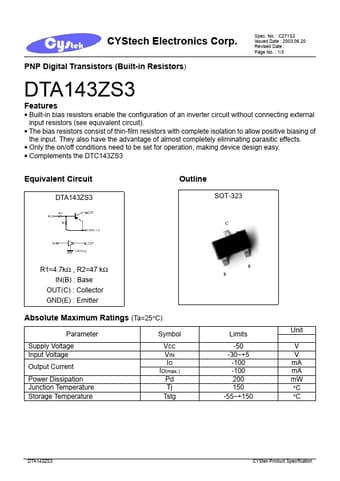

Additional preview pages of the DTA143ZS3 datasheet.

Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit).
The bias resistors consist of thin-film resistors with complete isolation to allow positive biasing of the input. They also have the advantage of almost completely eliminating parasitic effects.
Only the on/off conditions need to be set for operation, making device design easy.
Complements the DTC143ZS3 Equivalent C.
