BU2615S Datasheet (Rohm) - PLL frequency synthesizer for tuners

BU2615S, PLL frequency synthesizer for tuners

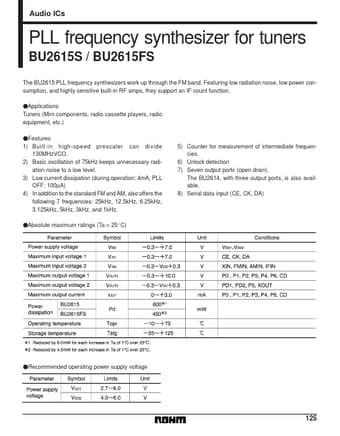

BU2615S / BU2615FS 127 Audio ICs FElectrical characteristics (unless otherwise noted, Ta = 25_C, VDD1 = VDD2 = 5.0V) BU2615S / BU2615FS 128 Audio ICs FExplanation of the data (1) Division data: For D0 through D15 (When S = 1, use D4 through D15.) BU2615S / BU2615FS (2) (3) (4) CT: Freque

BU2615S Features

* 1) Built-in high-speed prescaler can divide 130MHzVCO. 2) Basic oscillation of 75kHz keeps unnecessary radiation noise to a low level. 3) Low current dissipation (during operation: 4mA, PLL OFF: 100µA) 4) In addition to the standard FM and AM, also offers the following 7 frequencies: 25kHz, 12.5kHz,
