BU2611AF - PLL frequency synthesizer for tuners

Rohm

📥 Download Datasheet

BU2611AF Datasheet Preview — Preview of BU2611AF PDF

Datasheet Details

Part number	BU2611AF
Manufacturer	ROHM
File Size	73.20 KB
Description	PLL frequency synthesizer for tuners
Datasheet	BU2611AF_Rohm.pdf

BU2611AF Product details

Description

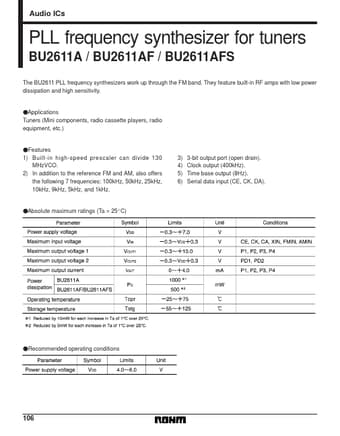

107 Audio ICs BU2611A / BU2611AF / BU2611AFS FElectrical characteristics (unless otherwise noted, Ta = 25_C, VDD = 5.0V) FData format (1) Division data: For D0 through D13 (For AMN, use D4 through D13.) (2) Test data: T0 through T1 are taken as (0, 0).108 Audio ICs FData format (3) P0, P1, P2, P3, TB: port output, time base output BU2611A / BU2611AF / BU2611AFS (4) R0, R1, R2, standard frequency data (5) S: input selection data 1: FMIN 0: AMIN FExternal dimensions (Units: mm)

Features

1) Built-in high-speed prescaler can divide 130 MHzVCO. 2) In addition to the reference FM and AM, also offers the following 7 frequencies: 100kHz, 50kHz, 25kHz, 10kHz, 9kHz, 5kHz, and 1kHz. 3) 4) 5) 6) 3-bit output port (open drain). Clock output (400kHz). Time base output (8Hz). Serial data input (CE, CK, DA). FAbsolute maximum ratings (Ta = 25_C) FRecommended operating conditions 106 Audio ICs FBlock diagram BU2611A / BU2611AF / BU2611AFS FPin.
