BM1051F - Quasi-Resonant Control DC/DC converter and Power Factor Correction converter

Description

BM1051F is compounded LSI of Power Factor Correction converter (PFC) for harmonic solution and DC/DC converter (DC/DC).

Because DC/DC operates on Quasi-resonant method, DC/DC contributes to Low EMI.

BM1051F built in a HV starter circuit that tolerates 650V.

Features

  • -resonant circuit + PFC circuit.
  • Built-in HV Starter circuit.
  • Low consumption current (typ.10uA) when starter circuit is OFF.
  • Quasi resonant circuit Max operating frequency(120kHz) Frequency reduction function Over-current limiting variable function Pulse-by-pulse over-current protection circuit Built-in Soft start Voltage protection function (brown out) during low input ZT pin Over Voltage Protection Output overload protection (auto recovery /latch switching enabled) 250nsec Lea.

📥 Download Datasheet

Datasheet Details

Part number BM1051F
Manufacturer ROHM
File Size 2.40 MB
Description Quasi-Resonant Control DC/DC converter and Power Factor Correction converter
Datasheet download datasheet BM1051F Datasheet

📁 Similar Datasheet

  • BM100-28 - NPN SILICON RF POWER TRANSISTOR (ASI)
  • BM1001-7R - 50 Watt DC-DC Converters (Power-One)
  • BM1012LF - COMMON MODE CHOKE COIL (Sumida Corporation)
  • BM1031 - X-Band Magnetron (EEV)
  • BM1084 - Voltage Regulator (Bookly Microelectronic)
  • BM10B-SRSS-TB - Disconnectable Insulation displacement connectors (SR)
  • BM1117 - Adjustable and fixed voltage regulators (Bookly Microelectronic)
  • BM1117A - Adjustable and fixed voltage regulator (Bookly)
  • BM1117N - 1A Voltage High Speed LDO Regulators (Bookly)
  • BM1122 - Fixed voltage regulators (Bookly Microelectronic)
Other Datasheets by Rohm
  • BM1050AF-G - Quasi-Resonant Control DC/DC converter and Power Factor Correction converter
  • BM1383AGLV - Pressure Sensor
  • BM1386GLV - Pressure Sensor
  • BM1390GLV-Z - Pressure Sensor
  • BM14270MUV-LB - Current Sensor
  • BM1C001F - AC/DC Drivers Power Factor Correction
  • BM1C101F - Power Factor Correction and Quasi-Resonant DC/DC converter
  • BM1C102F - Power Factor Correction and Quasi-Resonant DC/DC converter

Full PDF Text Transcription

Click to expand full text

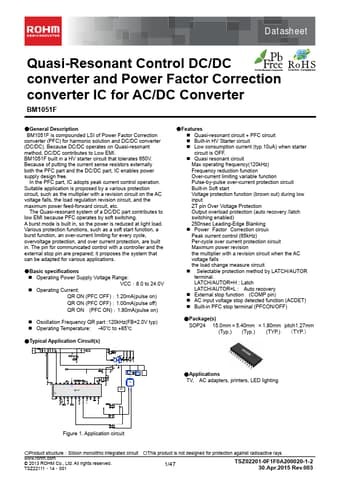

Datasheet Quasi-Resonant Control DC/DC converter and Power Factor Correction converter IC for AC/DC Converter BM1051F ●General Description BM1051F is compounded LSI of Power Factor Correction converter (PFC) for harmonic solution and DC/DC converter (DC/DC). Because DC/DC operates on Quasi-resonant method, DC/DC contributes to Low EMI. BM1051F built in a HV starter circuit that tolerates 650V. Because of putting the current sense resistors externally both the PFC part and the DC/DC part, IC enables power supply design free. In the PFC part, IC adopts peak current control operation.
