BD8179MUV 5V Input Multi-channel System Power Supply

BD8179MUV Description

Power Supply IC Series for TFT-LCD Panels 5V Input Multi-channel System Power Supply IC BD8179MUV No.09035EBT04 *.
The BD8179MUV is a system power supply IC for TFT panels.

BD8179MUV Features

* 1) Step Up DC/DC Converter. 2) Incorporates 18V, 3.0A N-channel FET 3) Linear-Regulator Controllers for VGON and VGOFF 4) 5 channel Operational Amplifiers/±150mA Output Short-Circuit Current 40V / µs Slew Rate 5) Switching Frequency: 1200 kHz. 6) Gate Shading Function Included. 7) Protection Circuit

BD8179MUV Applications

* Liquid crystal TV, PC monitor, and TFT-LCD panel
* Absolute maximum ratings (Ta = 25℃) Parameter Power Supply Voltage VMAIN Voltage SUP Voltage DRVP Voltage DRVN Voltage SRC Voltage CTL Voltage Junction Temperature Power Dissipation Operating Temperature Range Storage Temperature Range Symbol VIN

📥 Download Datasheet

Preview of BD8179MUV PDF

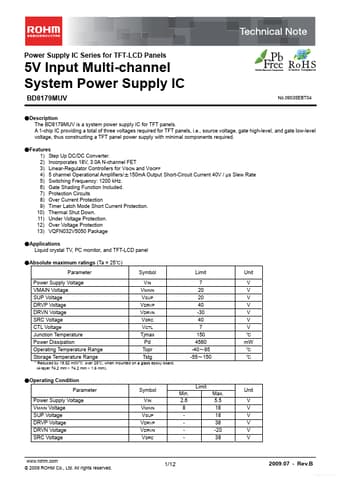

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BD8179MUV
Manufacturer
ROHM ↗
File Size
446.60 KB
Datasheet
BD8179MUV_Rohm.pdf
Description
5V Input Multi-channel System Power Supply
