BD8174MU, BD8174MUV Multi-channel Power-Supply

BD8174MU Description

Datasheet Power Supply IC Series for TFT-LCD Panels Output voltage fixed-type Multi-channel System Power Supply IC BD8174MUV General .
The BD8174MUV is a system power supply IC that generates 6 power supply channels required by TFT-LCD panels on a single chip.

BD8174MU Features

* Step-up DC/DC Converter with Built-in 3A FET
* Synchronous Step-down DC/DC Converter with Built-in 2A FET
* High Voltage LDO (50mA)
* Low Voltage LDO (400mA)
* Positive/ Negative Charge Pumps (Integrated-diode)
* 10bit DAC 4CH
* VCOM Amplifier
* Gate Shading Functio

BD8174MU Applications

* LCD TV power supplies ○Product structure：Silicon monolithic integrated circuit www. rohm. com © 2016 ROHM Co. , Ltd. All rights reserved. TSZ2211114001 ○This product has no designed protection against radioactive rays 1/38 TSZ02201-0313AAZ00670-1-2 17.Feb.2016 Rev.001 BD8174MUV Typical Application

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BD8174MU, BD8174MUV. Please refer to the document for exact specifications by model.

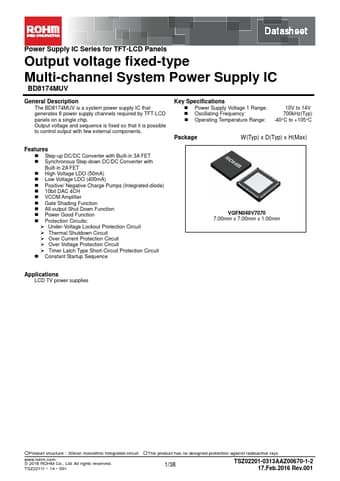

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BD8174MU, BD8174MUV
Manufacturer
ROHM ↗
File Size
1.46 MB
Datasheet
BD8174MUV-Rohm.pdf
Description
Multi-channel Power-Supply
Note
This datasheet PDF includes multiple part numbers: BD8174MU, BD8174MUV.
Please refer to the document for exact specifications by model.
