BD6721FS - Multifunction Single-phase Full-wave Fan Motor Driver

BD6721FS Description

Datasheet DC Brushless Fan Motor Drivers Multifunction Single-phase Full-wave Fan Motor Driver BD6721FS *General .
BD6721FS is a 1chip driver that composes H-bridge of power DMOS FET.

BD6721FS Features

* Driver including power DMOS FET
* Speed controllable by DC / direct PWM input
* PWM soft switching
* Quick start
* Current limit
* Lock protection and automatic restart
* Rotation speed pulse signal (FG) output
* Lock alarm signal (AL

📥 Download Datasheet

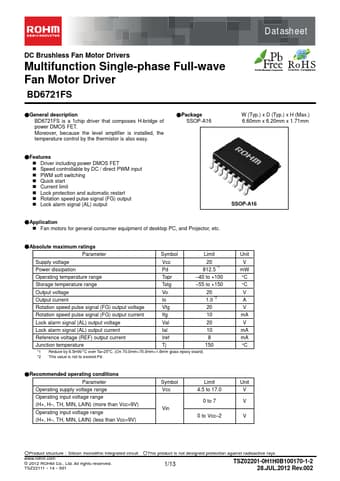

Preview of BD6721FS PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BD6721FS
Manufacturer
ROHM ↗
File Size
531.55 KB
Datasheet
BD6721FS_Rohm.pdf
Description
Multifunction Single-phase Full-wave Fan Motor Driver
