BD6701F - Two-phase Full-wave DC Brushless Fan Motor Drivers

Description

BD6701F is two-phase half-wave fan motor 1 chip driver that composes 2 Nch power DMOS FET.

This driver incorporates lock protection, automatic restart circuit and FG/AL output.

Features

  • Power Tr incorporated.
  • Incorporates reverse connection protection diode.
  • Incorporates lock protection and automatic restart circuit.
  • Rotation speed pulse signal (FG) output.
  • Lock alarm signal (AL) output SOP8.

📥 Download Datasheet

Datasheet Details

Part number BD6701F
Manufacturer ROHM
File Size 404.07 KB
Description Two-phase Full-wave DC Brushless Fan Motor Drivers
Datasheet download datasheet BD6701F Datasheet

📁 Similar Datasheet

  • BD670 - COMPLEMENTARY SILICON POWER DARLINGTON TRANSISTORS (STMicroelectronics)
  • BD67 - DARLINGTON POWER TRANSISTORS NPN SILICON (ON Semiconductor)
  • BD675 - Silicon NPN Transistor (Motorola Inc)
  • BD675 - NPN Silicon Transistor (ON Semiconductor)
  • BD675 - Power Transistor (Comset Semiconductors)
  • BD675 - NPN TRANSISTORS (TRANSYS)
  • BD675 - NPN SILICON POWER DARLINGTON TRANSISTOR (Central Semiconductor)
  • BD675 - Silicon NPN Darligton Power Transistors (Savantic)
  • BD675 - NPN PLASTIC POWER DARLINGTON TRANSISTORS (CDIL)
  • BD675 - Silicon NPN transistor (BLUE ROCKET ELECTRONICS)
Other Datasheets by Rohm
  • BD6709FS - DC Brushless Fan Motor Drivers
  • BD6712AF - 2-Phase Half-Wave Pre Driver
  • BD6713EFV - Single-Phase Full-Wave Motor Pre-Driver
  • BD67173NUX - Three-Phase Full-Wave Fan Motor Driver
  • BD6718FV - DC Brushless Fan Motor Drivers
  • BD6721FS - Multifunction Single-phase Full-wave Fan Motor Driver
  • BD6722FS - Multifunction Single-phase Full-wave Fan Motor Driver
  • BD6726FU - Multifunction Single-phase Full-wave Fan Motor Driver

Full PDF Text Transcription

Click to expand full text

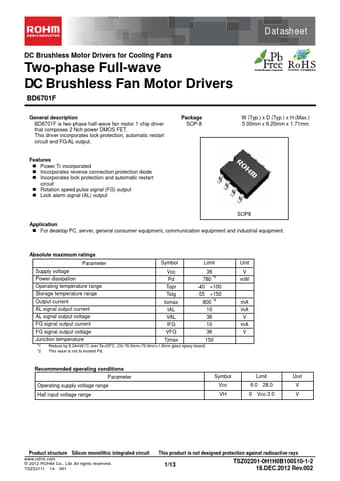

Datasheet DC Brushless Motor Drivers for Cooling Fans Two-phase Full-wave DC Brushless Fan Motor Drivers BD6701F General description BD6701F is two-phase half-wave fan motor 1 chip driver that composes 2 Nch power DMOS FET. This driver incorporates lock protection, automatic restart circuit and FG/AL output. Package SOP-8 W (Typ.) x D (Typ.) x H (Max.) 5.00mm x 6.20mm x 1.71mm Features „ Power Tr incorporated „ Incorporates reverse connection protection diode „ Incorporates lock protection and automatic restart circuit „ Rotation speed pulse signal (FG) output „ Lock alarm signal (AL) output SOP8 Application „ For desktop PC, server, general consumer equipment, communication equipment and industrial equipment.
