BD46E402, BD45E485 - CMOS Voltage Detector

Rohm

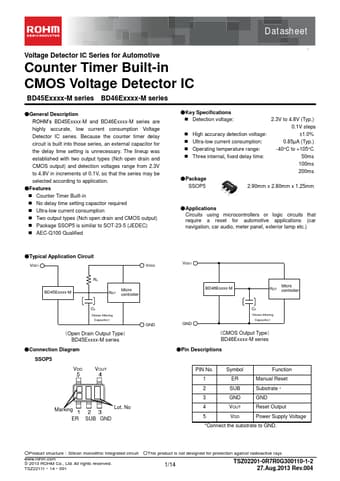

📥 Download Datasheet

BD46E402 Datasheet Preview — This datasheet PDF includes multiple part numbers: BD46E402, BD45E485. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	BD46E402, BD45E485
Manufacturer	ROHM
File Size	688.26 KB
Description	CMOS Voltage Detector
Datasheet	BD45E485-Rohm.pdf
Note	This datasheet PDF includes multiple part numbers: BD46E402, BD45E485. Please refer to the document for exact specifications by model.

BD46E402 Product details

Description

ROHM’s BD45Exxxx-M and BD46Exxxx-M series are highly accurate, low current consumption Voltage Detector IC series.Because the counter timer delay circuit is built into those series, an external capacitor for the delay time setting is unnecessary.The lineup was established with two output types (Nch open drain and CMOS output) and detection voltages range from 2.3V to 4.8V in increments of 0.1V, so that the series may be selected according to application.

Features

br>.
Counter Timer Built-in.
No delay time setting capacitor required.
Ultra-low current consumption.
Two output types (Nch open drain and CMOS output).
Package SSOP5 is similar to SOT-23-5 (JEDEC).
AEC-Q100 Qualified.
Key Specifications.
Detection voltage: 2.3V to 4.8V (Typ. ).
High accuracy detection voltage:.
Ultra-low current consumption:.
Operating temperature range:.
Three internal, fixed delay time: 0.1V steps ±1.0% 0.85µA (Typ. ) -4.
