BD41030FJ-C - LIN Transceiver

Name: BD41030FJ-C
SKU: BD41030FJ-C-1086081

ROHM

📥 Download Datasheet

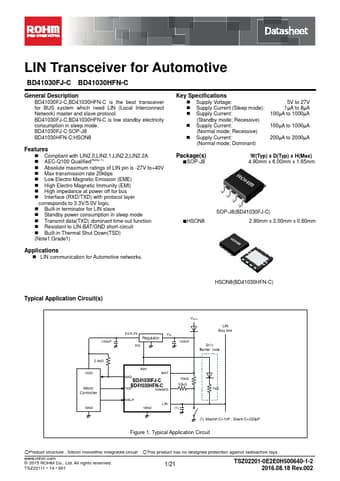

BD41030FJ-C Datasheet Preview — Preview of BD41030FJ-C PDF

Datasheet Details

Part number	BD41030FJ-C
Manufacturer	ROHM
File Size	0.99 MB
Description	LIN Transceiver
Datasheet	BD41030FJ-C-ROHM.pdf

BD41030FJ-C Product details

Description

BD41030FJ-C,BD41030HFN-C is the best transceiver for BUS system which need LIN (Local Interconnect Network) master and slave protocol.BD41030FJ-C,BD41030HFN-C is low standby electricity consumption in sleep mode.BD41030FJ-C:SOP-J8 BD41030HFN-C:HSON8

Features

Compliant with LIN2.0,LIN2.1,LIN2.2,LIN2.2A.
AEC-Q100 Qualified(Note 1).
Absolute maximum ratings of LIN pin is -27V to+40V.
Max transmission rate 20kbps.
Low Electro Magnetic Emission (EME).
High Electro Magnetic Immunity (EMI).
High impedance at power off for bus.
Interface (RXD/TXD) with protocol layer corresponds to 3.3V/5.0V logic.
Built-in terminator for LIN slave.
Standby power consumption in sleep mode.
Transmit data(TXD) dominant.
