BD3401KS2 - Single Power Supply Sound Processors

Name: BD3401KS2
SKU: BD3401KS2-850046

Rohm

📥 Download Datasheet

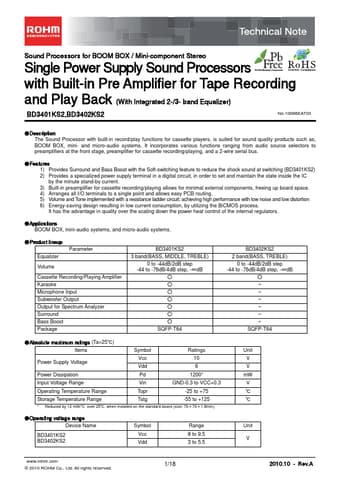

BD3401KS2 Datasheet Preview — Preview of BD3401KS2 PDF

Datasheet Details

Part number	BD3401KS2
Manufacturer	ROHM
File Size	471.04 KB
Description	Single Power Supply Sound Processors
Datasheet	BD3401KS2-Rohm.pdf

BD3401KS2 Product details

Description

The Sound Processor with built-in record/play functions for cassette players, is suited for sound quality products such as, BOOM BOX, mini- and micro-audio systems.

Features

1) Provides Surround and Bass Boost with the Soft-switching feature to reduce the shock sound at switching (BD3401KS2) 2) Provides a specialized power supply terminal in a digital circuit, in order to set and maintain the state inside the IC by the minute stand-by current. 3) Built-in preamplifier for cassette recording/playing allows for minimal external components, freeing up board space. 4) Arranges all I/O terminals to a single point and allows easy PCB routing. 5) Volume and Tone implement.
