2SC4132 - Power Transistor

Rohm

📥 Download Datasheet

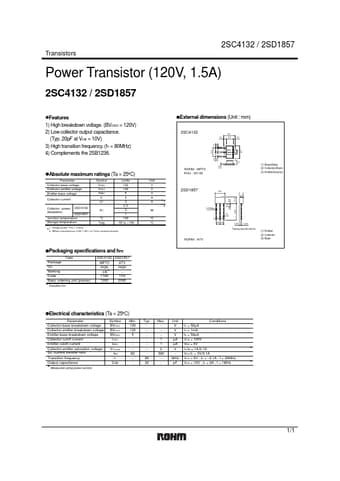

2SC4132 Datasheet Preview — Preview of 2SC4132 PDF

Datasheet Details

Part number	2SC4132
Manufacturer	ROHM
File Size	34.60 KB
Description	Power Transistor
Datasheet	2SC4132_Rohm.pdf

2SC4132 Product details

Features

1) High breakdown voltage. (BVCEO = 120V) 2) Low collector output capacitance. (Typ. 20pF at VCB = 10V) 3) High transition frequency. (fT = 80MHz) 4) Complements the 2SB1236. zAbsolute maximum ratings (Ta = 25°C) Parameter Symbol Limits Collector-base voltage VCBO 120 Collector-emitter voltage VCEO 120 Emitter-base voltage VEBO 5 Collector current IC 2 ICP 3 Collector power dissipation 2SC4132 2SD1857 PC 0.5 2 1 Junction temperature Tj 150 Storage temperature Tstg.
