2SC4130 - Silicon NPN Transistor

📥 Download Datasheet

Datasheet Details

Part number 2SC4130
Manufacturer Sanken
File Size 25.66 KB
Description Silicon NPN Transistor
Datasheet download datasheet 2SC4130 Datasheet

📁 Similar Datasheet

  • 2SC4130 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC4130 - NPN Transistor (INCHANGE)
  • 2SC4131 - NPN Transistor (INCHANGE)
  • 2SC4131 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC4132 - Power Transistor (Rohm)
  • 2SC4132 - NPN Epitaxial Planar Silicon Transistors (Kexin)
  • 2SC4133 - NPN Epitaxial Planar Silicon Transistors (Sanyo)
  • 2SC4134 - Silicon NPN Power Transistor (Inchange Semiconductor)
  • 2SC4134 - PNP/NPN Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)
  • 2SC4134 - Transistors (Kexin)
Other Datasheets by Sanken electric

Full PDF Text Transcription

Click to expand full text

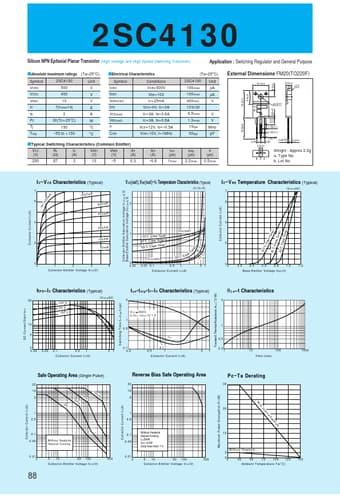

2SC4130 Silicon NPN Epitaxial Planar Transistor (High Voltage and High Speed Switchihg Transistor) sAbsolute maximum ratings (Ta=25°C) Symbol VCBO VCEO VEBO IC IB PC Tj Tstg 2SC4130 500 400 10 7(Pulse14) 2 30(Tc=25°C) 150 –55 to +150 Unit V V V A A W °C °C Application : Switching Regulator and General Purpose (Ta=25°C) sElectrical Characteristics Symbol ICBO IEBO V(BR)CEO hFE VCE(sat) VBE(sat) fT COB Conditions VCB=500V VEB=10V IC=25mA VCE=4V, IC=3A IC=3A, IB=0.6A IC=3A, IB=0.6A VCE=12V, IE=–0.5A VCB=10V, f=1MHz External Dimensions FM20(TO220F) 4.0±0.2 10.1±0.2 4.2±0.2 2.8 c0.5 2SC4130 100max 100max 400min 10 to 30 0.5max 1.3max 15typ 50typ Unit µA V V V MHz pF 13.0min 16.9±0.3 8.4±0.2 µA 1.35±0.15 1.35±0.15 0.85 +0.2 -0.1 0.45 +0.2 -0.1 2.54 2.2±0.2 2.4±0.
