2SC3415S, 2SC4061K - Chroma Amplifier Transistor

Datasheet Details

Part number	2SC3415S, 2SC4061K
Manufacturer	ROHM
File Size	159.65 KB
Description	Chroma Amplifier Transistor
Datasheet	2SC4061K_Rohm.pdf
Note	This datasheet PDF includes multiple part numbers: 2SC3415S, 2SC4061K. Please refer to the document for exact specifications by model.

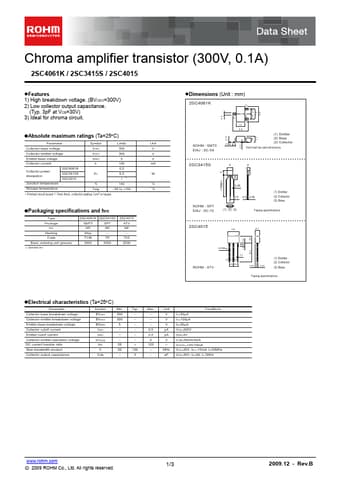

1) High breakdown voltage. (BVCEO=300V) 2) Low collector output capacitance. (Typ. 3pF at VCB=30V) 3) Ideal for chroma circuit. zExternal dimensions (Unit : mm) (1) 2SC4061K 0.4 (3) 1.6 2.8 0.95 0.95 1.9 2.9 (2) Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector power dissipation Junction temperature Storage temperature 2SC4061K 2SC3415S 2SC4015 Symbol VCBO VCEO VEBO IC PC Tj Tstg Limits 300 300 5 100 0.2 1 ∗ 150.
55 to +150.
