2SC1740S - Transistor

Rohm

📥 Download Datasheet

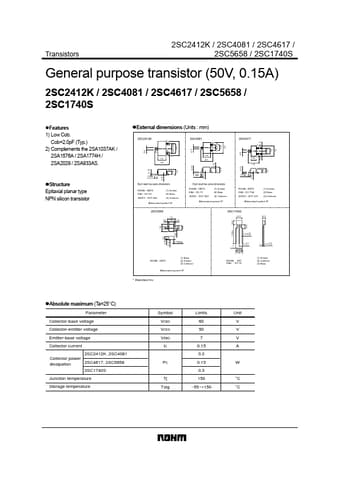

2SC1740S Datasheet Preview — Preview of 2SC1740S PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	2SC1740S
Manufacturer	ROHM
File Size	77.95 KB
Description	Transistor
Datasheet	2SC1740S_Rohm.pdf

2SC1740S Product details

Features

1) Low Cob. Cob=2.0pF (Typ. ) 2) Complements the 2SA1037AK / 2SA1576A / 2SA1774H / 2SA2029 / 2SA933AS. !External dimensions (Units : mm) (1) 2SC2412K 2SC4081 (1) 2SC4617 0.65 0.65 (2) 0.95 0.95 1.9 1.3 2.0 (1) (2) 0.2 0.5 0.5 (3) 0.4 (3) 0.3 1.6 2.8 2.1 0.8 0.2 0.15 1.6 0.7 0.9 0.15 0.2 1.25 0.3 (3) 0.55 0.15 0.8 1.1 0~0.1 0.3Min. !Structure Epitaxial planar type NPN silicon transistor Each lead has same dimensions ROHM : SMT3 EIAJ : SC-59 JEDEC : SOT-346 (1) Emit.
