2SC1741AS - Medium Power Transistor

Features

  • 1) High current. (IC=5A) 2) Low saturation voltage, typically VCE(sat)=0.1V at IC / IB=150mA / 15mA. Dimensions (Unit : mm) SPT (SC-72) Packaging specifications and hFE Type Package hFE Marking Code Basic ordering unit (pleces) 2SC1741AS SPT QR TP 5000 (1) Emitter (2) Collector (3) Bace (1) (2) (3) Absolute maximum rationgs (Ta=25 C) Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector power dissipation Junction temperature Storage te.

📥 Download Datasheet

Datasheet preview – 2SC1741AS

Datasheet Details

Part number 2SC1741AS
Manufacturer ROHM
File Size 94.04 KB
Description Medium Power Transistor
Datasheet download datasheet 2SC1741AS Datasheet
Additional preview pages of the 2SC1741AS datasheet.

📁 Similar Datasheet

  • 2SC1741AM - Silicon NPN transistor (BLUE ROCKET ELECTRONICS)
  • 2SC1740 - NPN Silicon Transistor (SEMTECH)
  • 2SC1740 - NPN Silicon Transistor (CHINA BASE)
  • 2SC1740 - Silicon NPN transistor (BLUE ROCKET ELECTRONICS)
  • 2SC1740M - Silicon NPN transistor (BLUE ROCKET ELECTRONICS)
  • 2SC1740S - NPN Plastic-Encapsulated Transistor (SeCoS)
  • 2SC1740S-Q - NPN Plastic-Encapsulate Transistors (MCC)
  • 2SC1740S-R - NPN Plastic-Encapsulate Transistors (MCC)
  • 2SC1740S-S - NPN Plastic-Encapsulate Transistors (MCC)
  • 2SC1706 - Silicon NPN Transistor (Hitachi Semiconductor)
Other Datasheets by Rohm

Full PDF Text Transcription

Click to expand full text

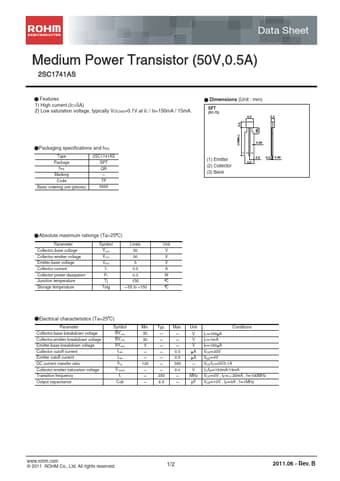

Data Sheet Medium Power Transistor (50V,0.5A) 2SC1741AS Features 1) High current.(IC=5A) 2) Low saturation voltage, typically VCE(sat)=0.1V at IC / IB=150mA / 15mA. Dimensions (Unit : mm) SPT (SC-72) Packaging specifications and hFE Type Package hFE Marking Code Basic ordering unit (pleces) 2SC1741AS SPT QR TP 5000 (1) Emitter (2) Collector (3) Bace (1) (2) (3) Absolute maximum rationgs (Ta=25 C) Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC PC Tj Tstg Limits 50 50 5 0.5 0.
